A2-5900HX mini computer with excellent workmanship and strong performance

Hello, everyone. Here is an evaluation report of Mini PC. A year and a half ago, I participated in testing the previous generation products of their family's same series. Now I bring you the evaluation report of their latest product A2-5900HX Mini PC.

After years of development, EGLOBAL has a very complete product line, in which A series (AMD CPU) and V (Intel CPU) are flagship series, and their configuration and workmanship are very close to that of Intel NUC. Today we are going to test the A2-5900HX Mini PC. This flagship Mini PC uses AMD Ryzen 9 5900HX. At the same time, because I have participated in the A1-2700U of the same series before, this will be in the form of vertical evaluation, Take a look at the progress in workmanship and design of EGSMTPC brand in the past two years.

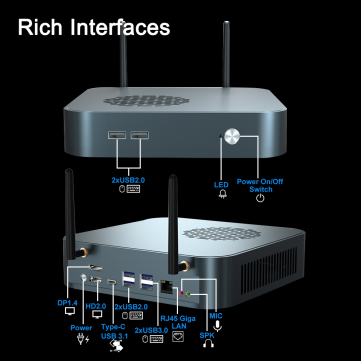

In terms of the front IO interface of the MINI PC, the A2-5900HX Mini PC provides two power keys and USB 2.0.

In terms of the front IO interface of the MINI PC, it seems intuitively that A2 has one less headphone interface than A1. In addition, A2 has two 2.5G wired network interfaces . What do you think? Yes, it can do soft routing!

A2-5900HX Mini PC Hardware and Score

CPU

In terms of CPU, the A2-5900HX Mini PC uses AMD's Ryzen 9 5900HX. Although it is not AMD's latest 6000 series APU, its performance is still strong enough due to its 8-core 16 thread, 3.3GHz base frequency, 4.6GHz maximum acceleration frequency, and 16MB three-level cache. In addition to EGSMTPC, many mainstream brands in the market still choose AMD 5000 series processors.

In the CPU-Z test, AMD Ryzen 9 5900HX scored 630.3 for single core, 5253.5 for multi-core, and 8.34 for multi-core. In terms of single performance, it is far superior to Intel's latest 12th generation Core i5-1240P in terms of single core performance, which is 568 points higher than the 10th generation Core desktop CPU i7-10700. This shows its powerful performance.

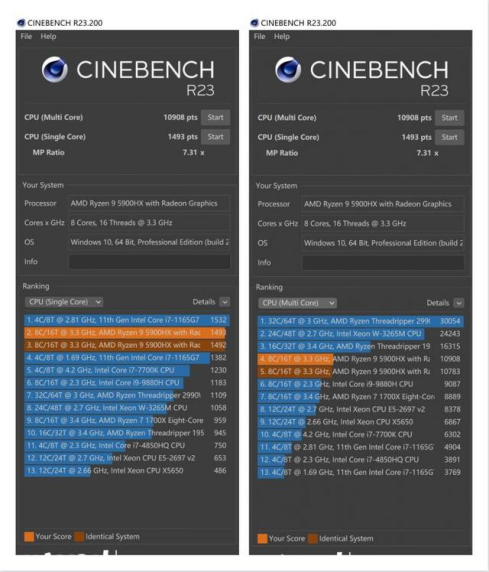

Cinebench R23 is a cross platform test suite used to test the hardware functions of computers. It can be used to test the 3D modeling, animation, motion graphics and rendering performance of Cinema 4D on multiple CPU cores. The program "is more suitable for high-end desktop and workstation platforms in specific fields". Cinebench is often used to demonstrate hardware features at technology fairs to show CPU performance.

In the actual test, AMD Ryzen 9 5900HX performed well, with a single core score of 1493 points and a multi core score of 10908 points.

Compared with the recently hot Intel Core i5-1240P, the single core performance score of AMD Ryzen 9 5900HX will be about 120 points lower, but the multi-core performance will be 1800 points higher. It can be seen that the full core CPU with the same number of threads has obvious advantages over the CPU designed with large and small cores of Intel in terms of performance under multithreaded heavy tasks, while the large and small cores of Intel will be better in terms of energy efficiency.

In short, the single core and multi-core scores of AMD Ryzen 9 5900HX are relatively high. As a MIini PC, compared with notebook computers, it does not need to consider battery life and has better heat dissipation. It can release full power for a long time, making it a reliable tool for office work and light productivity.

Internal structure

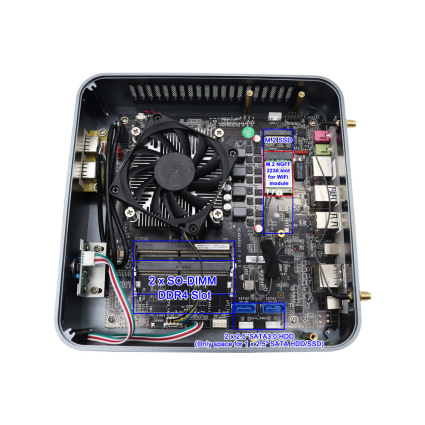

Unscrew the four screws on the back cover of A2-5900HX Mini PC to take off the back cover and explore its internal structure. First, it can be seen that an HDD bit is reserved at the back cover, which can provide a maximum storage space of 4TB for this Mini PC.

In terms of memory, A2-5900HX Mini PC is equipped with Crucial Yingruida DDR4 3200MHz 16GBx2 notebook memory with CL22 timing.

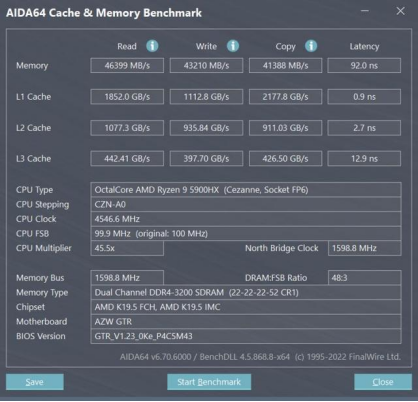

According to the actual measurement, the A2-5900HX Mini PC memory has a read speed of 46399MB/s, a write speed of 43210 MB/s, a copy speed of 41388 MB/s, and a delay of 92ns. In addition to the slightly higher latency, the reading and writing speed of the entire memory is moderate, which is good in the notebook memory.

In terms of wireless network card, the A2-5900HX Mini PC uses Intel AX200 with a total transmission rate of 1000M+and supports wifi6

With Bluetooth 5.0, ASUS high-end notebooks are also equipped with this wireless network card.

Summary

This A2-5900HX Mini PC is very suitable for daily office work and light productivity work. Whether it is for home or commercial use, its ultra small body can greatly save desktop space. After finishing work, you can also play a dozen e-sports online games with your colleagues, which can be said to be an office magic tool that takes into account both productivity and entertainment. In addition, because it has two 2.5G network ports, it can also be used as an HTPC in the living room, and it also provides soft routing, downloader, home data center, high-definition player, streaming desktop game pictures from the study to the TV and other functions, which can be said to be extremely playable.

Although the A2-5900HX Mini PC can still be improved, it is generally a very mature design and workmanship, powerful and reliable function Mini PC, which is worth considering for users who focus on daily office work and occasionally light productivity and entertainment. For video cards, we can expect the Mini PC with AMD Ryzen 9 6900HX in the future, which is the product to be released in the future.
