Use evaluation of A2-5900HX Mini Computer with excellent workmanship and strong performance

Hello, as promised, I'd like to bring you a Mini PC evaluation report. One and a half years ago, I participated in the test of the previous generation products of the same series in their family. Now I'd like to bring you the evaluation report of their latest product A2-5900HX.

Positioning introduction

After years of development, egsmtpc has a very complete product line. Among them, a series (AMD CPU) and f (Intel CPU) are the flagship series, and their configuration and workmanship are very close to Intel NUC. Today, we are going to test A2-5900HX, a flagship Mini PC using AMD ryzen 9 5900HX. At the same time, because I participated in A1 of the same series a year and a half ago, this time we will take the form of vertical evaluation, Take a look at the progress in workmanship and design of egsmtpc computer brand in the past two years.

Evolution in design and workmanship

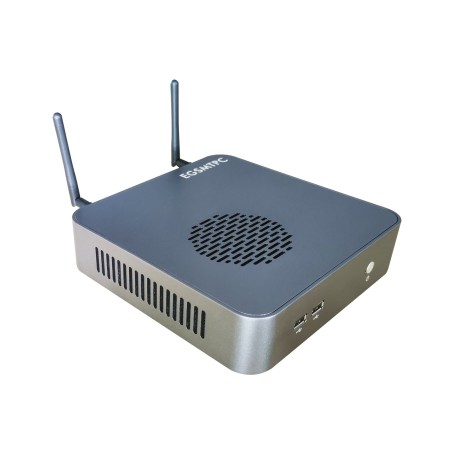

The most intuitive thing to see is that A2 Mini PC uses a grid top cover, and you can vaguely see the fan inside. When the computer is running, hot air is directly discharged from the top cover, which is much more practical than A1's hard non porous top cover.

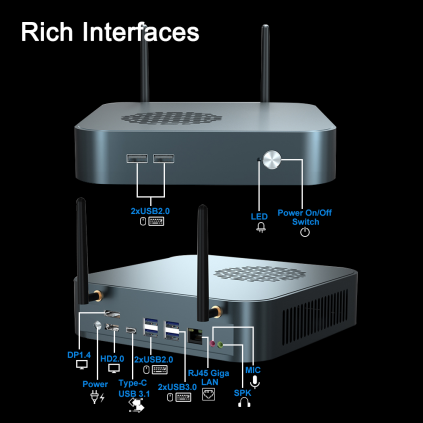

In terms of the front IO interface of the Mini PC, A2 provides a power switch, one LED lamp and two full-function USB 3.0.

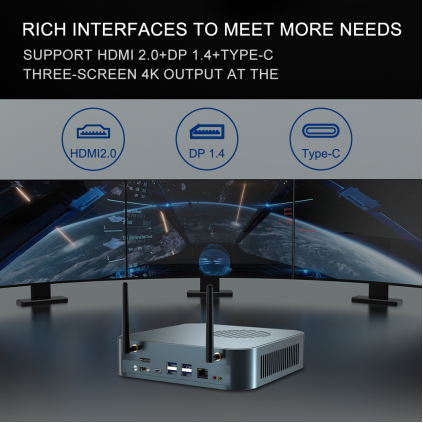

In terms of the front IO interface of the Mini PC, it seems intuitively that there are two USB2.0 interfaces, two USB3.0 interfaces, a full-featured usb3.1 type-C interface, a DP interface, an hdmi2.0 interface, an RJ45 Giga LAN gigabit network interface, an SPK and an MIC interface, and a power input port. Support triple display .

A2-5900HX hardware and running score

CPU

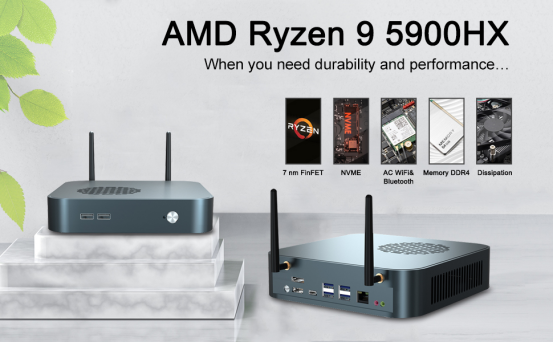

In terms of CPU, the A2-5900HX uses AMD's ryzen 9 5900HX. Although it is not AMD's latest 6000 series APU, its 8-core 16 threads, 3.3GHz reference clock frequency and 4.6ghz maximum acceleration clock, and 16MB level-3 cache still make its performance strong enough. In addition to A2-5900HX, many mainstream brand notebooks on sale still choose amd 5000 series processors.

In the CPU-Z test, AMD ryzen 9 5900HX has a single core score of 630.3, a multi-core score of 5253.5, and a multi-core multiplier of 8.34. In terms of performance alone, it is different from Intel's latest 12th generation core i5-1240p. In terms of single core performance, it is far better than the 568 points of the 10th generation core desktop CPU i7-10700, which shows its powerful performance.

Cinebench R23 is a cross platform test suite for testing the hardware functions of computers. It can be used to test the 3D modeling, animation, motion graphics and rendering performance of Cinema 4D on multiple CPU cores. This program is "more suitable for high-end desktop and workstation platforms for specific fields". Cinebench is usually used to demonstrate hardware functions at technology fairs to show CPU performance.

In the actual test, AMD ryzen 9 5900HX performed well, scoring 1493 points for single core and 10908 points for multi-core.

Compared with the recently popular Intel Core i5-1240p, the single core performance of AMD ryzen 9 5900HX is about 120 points lower, but the multi-core performance is 1800 points higher. It can be seen that the full large core CPU with the same number of threads has obvious advantages over the CPU with Intel's large and small core design in terms of performance under multi-threaded heavy load tasks, and Intel's large and small core design is relatively better in terms of energy efficiency.

In short, the single core and multi-core performance of AMD ryzen 9 5900HX are in a relatively high position, and as a Mini PC, it does not need to consider battery life and has better heat dissipation compared with notebook computers. It can release full power for a long time, making it a reliable tool for office and light productivity.

SSD

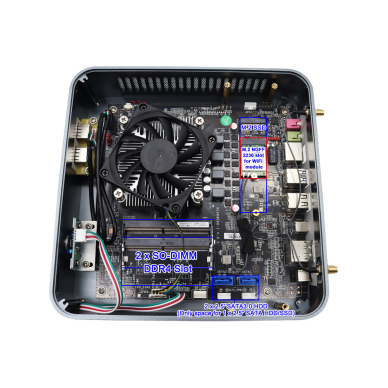

Unscrew the four screws on the back cover of A2-5900HX to remove the back cover to explore its internal structure. First of all, it can be seen that a HDD bit is reserved at the back cover, which can provide a maximum storage space of 4tb for this mini PC.

In terms of hard disk, Intel 660p m.2 SSD with a capacity of 512gb is used. This is a SSD that focuses on stability. Its read-write speed is actually very general.

In addition, a 2280 M 2 sata3 SSD interface, which can provide users with 2TB storage space expansion at most.

Memory

In terms of memory, the A2-5900HX Mini PC is equipped with crucial DDR4 3200mhz 16gbx2 notebook memory, and the timing is CL22.

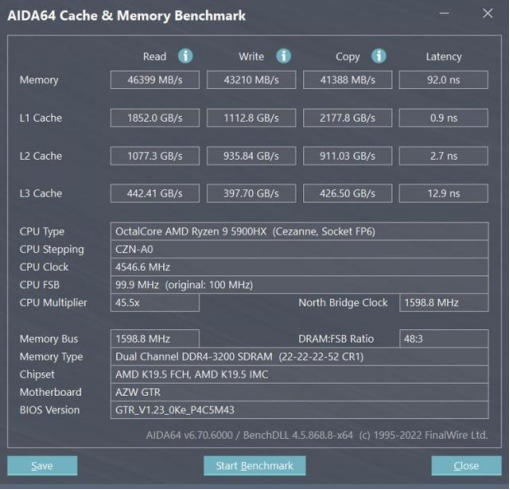

According to actual measurement, the read speed, write speed, copy speed and delay of a2-5900hx memory are 46399mb / s, 43210 MB / s and 41388 MB / s respectively. In addition to the slightly higher delay, the reading and writing speed of the whole memory is moderate, which is good in notebook memory.

wireless network adapter

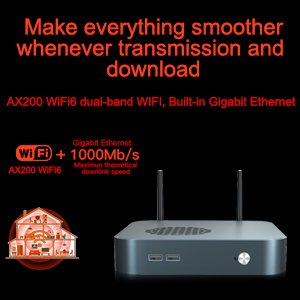

In terms of wireless network card, the A2-5900HX uses Intel's ax200 with a total transmission rate of 1800m and supports WiFi 6

Unlike Bluetooth 5.2, it is not as good as the WiFi 6 wireless network card of the ax201, but it is also fairly standard. After all, ASUS high-end notebooks also carry this wireless network card.

A2-5900HX performance test

According to the actual measurement, the total score of Master Lu of A2-5900HX is 838000, including 551000 for the processor, 79000 for the graphics card, 99000 for the memory and 110000 for the hard disk. This fully shows the powerful performance of AMD ryzen 9 5900HX CPU.

PCMark 10

Next, we tested with a more professional pcmark 10.

Thanks to the 8-core 16 thread of AMD ryzen 9 5900HX and its 2100mhz core display frequency, the actual application score of A2-5900HX is very good. Pcmark10 scores 5428 points, including 9847 points for basic tasks (11815 points for software installation, 8708 points for video, and 9282 points for web browsing); Productivity score 6853 points (10441 points for spreadsheet and 4499 points for writing); Digital content creation 6432 points (picture editing 8595 points, rendering and visualization 6641 points, video editing 4664 points). It belongs to the middle and upper reaches of notebook computers and can easily meet the needs of office and entertainment.

Compared with the latest Intel Core i5-1240p, the score of AMD ryzen 9 5900HX is significantly higher, which should be attributed to its full core design and the significantly more powerful amd core graphics card.

Summary

Because I have participated in the evaluation activities of many egsmtpc brand Mini PCs, I can responsibly say that EGSMTPC brand has worked hard to improve the product design and workmanship step by step, and it can step into the ranks of high-end Mini PCs in both design and workmanship.

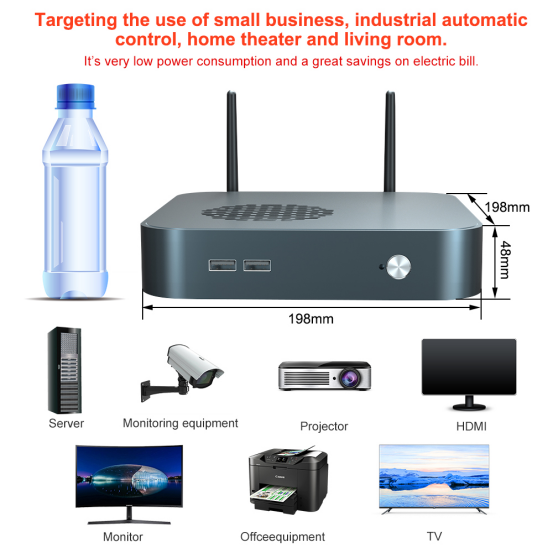

This EGSMTPC A2-5900HX is very suitable for daily office and light productivity work. Its ultra small body can greatly save desktop space, whether it is domestic or commercial. After busy work, you can also play a dozen E-sports online games such as dota2 with your colleagues, which can be said to be an office magic machine that takes into account light productivity and light entertainment. It can also be used as an HTPC in the living room, and provides functions such as Downloader, home data center, HD player, streaming study desktop game pictures to TV, which can be said to be very playable.

However, it is said that this A2-5900HX still has some room for improvement. First of all, its SSD is relatively stretched at present. In short, it is a little inadequate for the positioning of this machine's high-end Mini PC and its amd R9 CPU. I personally think that only the Samsung pm981a in the OEM SSD can match this machine. Therefore, it is a good choice to equip this Mini PC with a higher end SSD or simply remove the SSD, memory and wireless network card, and sell them in the form of quasi system. After all, Intel has applied the quasi system sales method to notebook computers at present, and it may become a more popular sales method in the future.

Well, the suggestions have been put forward. Finally, I would like to make a brief summary. Although the A2-5900HX still has room for improvement, it is a Mini PC with very mature design and workmanship, strong and reliable functions on the whole. It is worth considering for users who focus on daily office work and occasionally have light productivity and entertainment. There is a higher demand for graphics cards, and we can look forward to the Mini PC equipped with AMD ryzen 9 6900HX in the future
