EGSMTPC mini pc MV200, pc experience with 1650 independent video card

As EGSMTPC's E-sports miniPC, the MV200 has always been a strong business model with the EGSMTPC mini pc. It is only over 2L in full size, equipped with enough interfaces, and can further enhance performance and functionality by replacing modules. See the official website. Some of the selected models support up to 3 screens! In addition to horizontal placement under the display and vertical placement at random positions, the attached VESA pendant can also be used to mount the pc to the back of the display and turn it into an all-in-one machine, which is a good choice for pursuing office simplicity. After the Nvidia Quadro module is replaced, it will further improve the function and be competent for more professional tasks.

First, I put on a current desktop map. At the end of last year, I further adjusted the main computer of the study. Because I wanted to leave room for the display+IPAD PRO, I replaced it with the mini pc MV200. In order to further simplify the desktop space and equipment, I made adjustments.

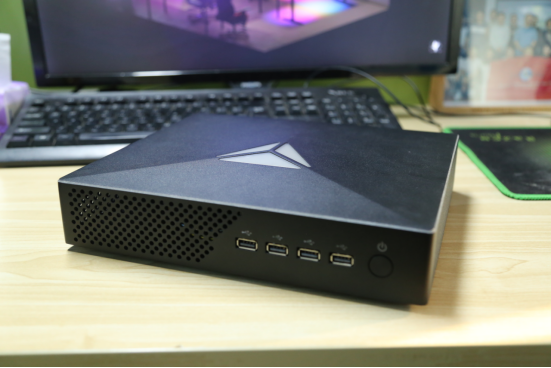

The front panel of the mini pc MV200 has four USB 2.0

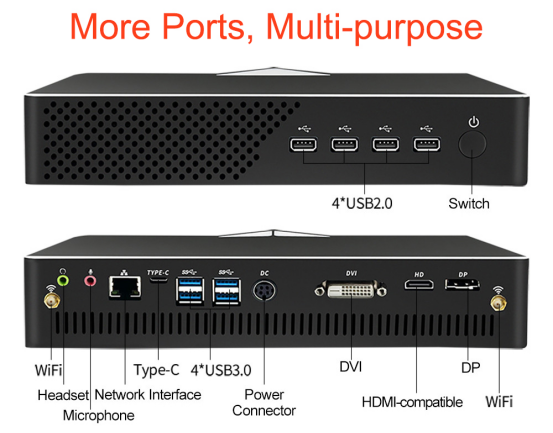

The MV200 part of my mini pc has two WIFI antenna interfaces, four USB 3.0 interfaces, Type-C interfaces, one HDMI interface, one DP interface and one DVI interface, and one RJ45 interface. The display expansion part has one HDMI interface, one DP interface and one DVI interface, which can realize the simultaneous display of three screens.

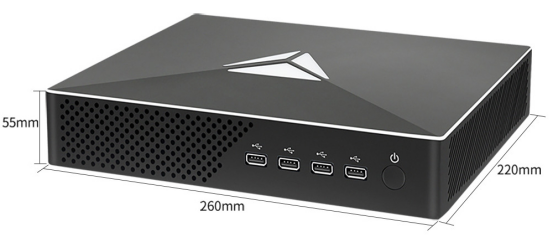

The mini pc MV200 I started with is a 9900K+1650 video card version. Its performance is powerful in the mini PC. The size of 26 x 22 x 5.5cm belongs to the standard small steel cannon, so although the size is small, the performance is not much worse, which is completely suitable for my needs.

My current mini pc MV200 does not lose power except that it has no lightning interface. In addition, the mini pc MV200 is pre installed with Win11 system, with its own WiFi. It can be used out of the box and powered on. It is also very suitable as a portable working machine with triple displays and dual displays. It can be easily taken away in a package or used on the desktop.

It is easy to remove the module according to the instructions. Don't worry about the interface exposed in the MV200 part of the mini pc. EGSMTPC has a specially attached small part to completely cover that part, which is beautiful and safe.

Dismantle

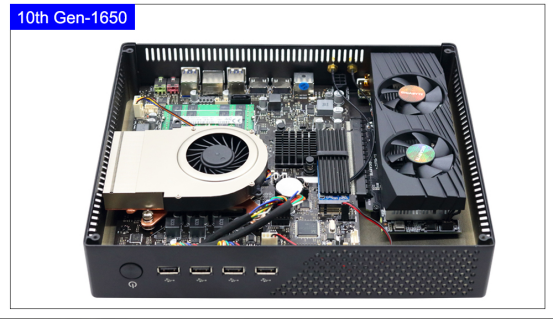

I disassembled the host module, which is the upper part of the mini pc MV200. After removing the upper cover, you can see that the mini pc MV200 can be loaded with a 2.5 inch hard disk (M2.2280 slot is below).

Dual notebook memory slot and wireless network card slot. Under the fan, the wireless network card has been installed. You can install the antenna by yourself.

After removing the 2.5 inch hard disk holder, you can see the M2.2280 slot and the M.2 hard disk with the WIN11 system installed. Power on and set it for immediate use.

Remove the fixing screws to replace the memory and wireless network card.

Pressure test of the baking machine: the baking machine lasts for 16 minutes, the temperature is basically stable, the CPU temperature is 76 ℃, the core temperature is 76 ℃, and the packaging temperature is 76 ℃.

Thanks to the function and modular design of the mini host MV200, this mini host is competent for many scenes. It not only acts as the main computer in my study, but also directly gets a guest role in the living room during the Spring Festival.

Because the UHD3000 has a wealth of input and output interface configurations, which can fully meet the requirements of asynchronous USB DAC interfaces. The UHD3000 can be decoded as a pure Hi Fi by an external digital turntable or PC, so I directly moved the mini pc MV200 in the study to the living room and connected the UHD3000 together as a living room computer to play first. Although I didn't install the video card module, I made a guest appearance in the same simple version of PB60G (a separate pc module can be started separately). However, with the performance of 9900K, if I don't force 3A games or design software too aggressively, it's easy for me to use it. In fact, I'm a little overqualified, ha ha.

Summary:

As the main machine of my current study computer, the mini pc MV200 gives consideration to both function and volume, which I am very satisfied with. After all, I started out because I liked the design that could expand the module and enhance the overall performance through the module; Another reason is that the petite 2.14L body has good performance and enough scalability, and the genuine Win10 system is pre installed. It can be said that it can be used out of the box with power. As a portable working machine with 3-display and dual display, it is very convenient. It has sufficient performance and can also fish properly. If there is a need for mobile office, it can be easily taken away with a computer bag.
