Integrated graphic can play 3A with high image quality? S600-5900HX mini pc

The S600-5900HX mini PC was officially sent to me by EGSMTPC some time ago. After more than half a month of experience, the S600-5900HX mini computer has become the king of price performance of the mini PC with its balanced configuration and more user-friendly price.

Therefore, today we bring you the performance test of the S600-5900HX mini PC.

S600-5900HX Mini PC Positioning and Configuration

S600-5900HX Mini PC Appearance and Disassembly

Take a look at the appearance, workmanship and simple disassembly of the S600-5900HX mini PC.

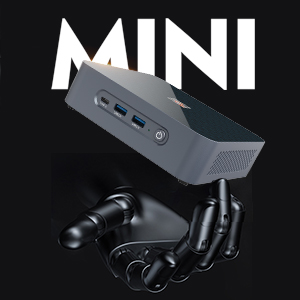

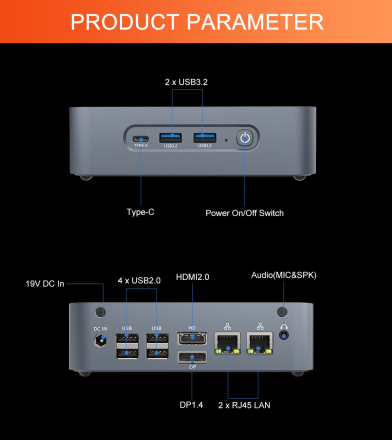

The S600-5900HX mini PC uses a metal body processed by CNC, which has no problem in appearance and durability. The front provides two USB 3.2 Gen1 (5Gbps) Type-A interfaces and one Type-C interface (supporting 4K video output). The front interfaces are complete, which can easily connect peripherals and mobile storage devices.

The back interface of the machine is more abundant. It has one HDMI interface and one DP1.4 interface (maximum support for 4K 60Hz video output), four USB 2.0 Gen1 Type-A interfaces, one headsetµphone interface and two gigabit wired interfaces. The DC power supply interface is also located at the back of the machine.

The upper cover is designed with a mirror and black as standard, which is also a highlight of this generation of EGSMTPC products. Even the joint names of animation and film characters may appear on the cover in the future, which makes the appearance of DIY much more likely.

By removing the four screws at the bottom, you can see that there is a 2.5 inch hard disk expansion bracket and a 2.5 inch fan for cooling the internal SSD. It can be seen that the S600-5900HX mini PC is small in size, but it has no shortage of functions. EGSMTPC is more sophisticated in using the internal space of the mini PC.

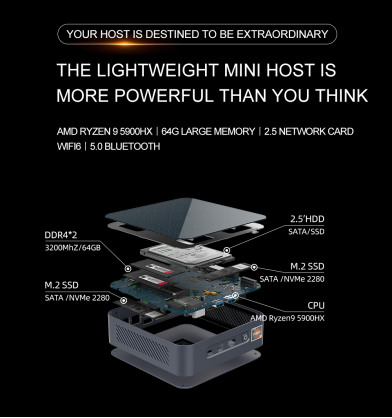

Remove the mechanical hard disk expansion bracket again, and you can see the back of the motherboard of the S600-5900HX mini pc. The S600-5900HX mini pc places the CPU, memory, and solid state on both sides of the motherboard to minimize the area of the motherboard. After all, the mini PC is different from the laptop, and has more advantages in thickness and heat dissipation. In addition, you can clearly see that the solid state and memory of the S600-5900HX mini PC are both from Crucial, a private brand of Storage Semiconductor.

Take off the upper cover, you can see the large area of the downforce fan, which compresses the cold air to the CPU to dissipate heat. Theoretically, the larger the area of the fan at the same speed, the greater its air volume. The advantages of the mini PC over the laptop in layout are again reflected.

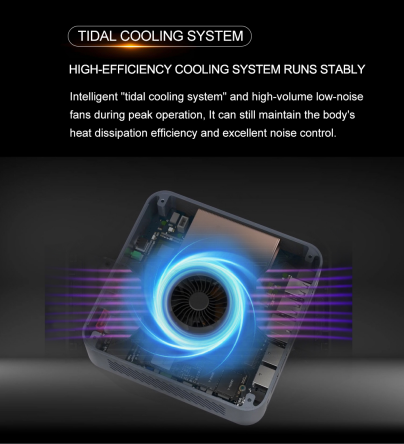

Borrowing an official drawing, the S600-5900HX mini pc has an air inlet at the top and bottom, and an air outlet at the left and right rear. The upper and lower air ducts are separated by the main board, which does not interfere with each other. The heat dissipation effect is very good.

S600-5900HX Mini PC Hardware and Performance Test

Now that the machine has been disassembled, let's take a look at the hardware model of the complete S600-5900HX mini PC and run a quick performance test.

SSD Introduction and Testing

CPU Performance Testing

The S600-5900HX mini PC is equipped with the new 45W standard pressure processor Reyzen 9 5900HX released by AMD this year. It is made of the latest Zen3 architecture and 7nm process. It has 8 cores and 16 threads. The maximum clock frequency is 4.6GHz. Its performance is very strong. At present, it belongs to the T1 level notebook CPU.

Summary

With the help of FSR technology or XeSS technology, the S600-5900HX mini pc can play the new 3A masterpiece smoothly with 40-50 FPS under 1080P high image quality, and can also play online games at a higher frame rate. As a basic office and light productivity tool, it is handy and very practical.

This mini PC has outstanding design and solid workmanship, and the quasi system only costs about 400 dollars. It is a highly cost-effective mini PC. I suggest that you have some hands-on ability, and friends familiar with the installation of Windows system can consider choosing the quasi system version, so that you can choose a higher specification and capacity SSD. If you want to get started and use it, or if you want to purchase it as an office machine, you are recommended to go one step at a time, Select a complete machine with a genuine Windows system.
