Instructions For Using GPIO In IBC Series Industrial Control Computers

7 inputs GPI1~GPI7:

GPI1

GPI2

GPI3

GPI4

GPI5

GPI6

GPI7

0xA00.bit0

0xA00.bit2

0xA00.bit7

0xA02.bit0

0xA00.bit4

0xA03.bit4

0xA04.bit3


7 outputs GPO1~GPO7:

GPO1

GPO2

GPO3

GPO4

GPO5

GPO6

GPO7

0xA03.bit1

0xA05.bit5

0xA00.bit1

0xA03.bit6

0xA04.bit5

0xA04.bit4

0xA03.bit0

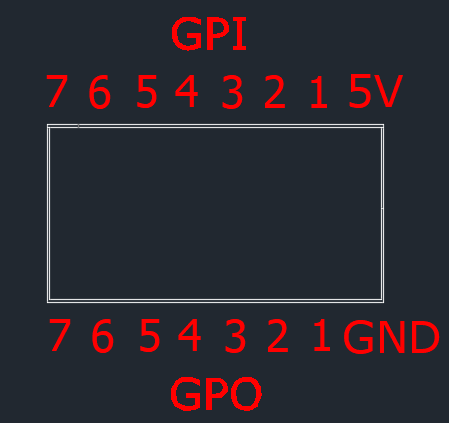

The hardware interfaces are as follows:

Instructions For Using GPIO In IBC Series Industrial Control Computers(图1)
