WiFi Modules in Mini PCs

        In the world of mini PCs, the WiFi module is a crucial component that enables wireless connectivity. As technology advances, the need for reliable and high-speed wireless communication in compact devices has never been greater. This article will guide you through the intricacies of WiFi modules in mini PCs and provide insights into selecting the right one for your needs.

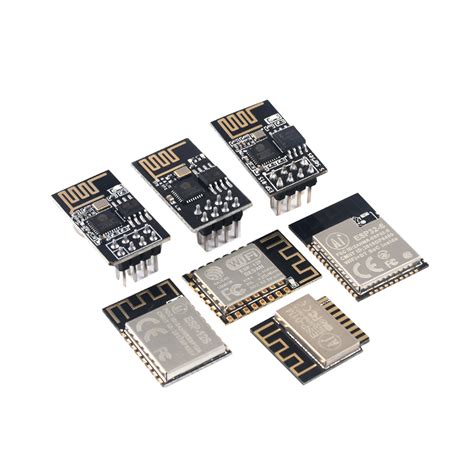

Understanding WiFi Modules:A WiFi module integrates all the necessary components for wireless communication using WiFi technology. Typically, it consists of a System on Chip (SoC) or a module with a WiFi radio transceiver, a microcontroller or processor, memory, and supporting circuits. These modules allow devices to connect to wireless networks, access the internet, exchange data, and communicate with other devices within the WiFi network's coverage area.

Key Features to Consider:

1. Communication Interface: USB, SDIO, and PCIe are common interfaces. Choose based on your mini PC's available ports.

2. Power Supply: Commonly 3V3, but some modules also support 5V. Ensure compatibility with your power supply.

3. Antenna Management: Options include PCB-mounted, external via I-PEX connectors, or designing your own with the motherboard.

4. Module Dimensions: Important for physical integration into your mini PC setup.

5. Operating Frequency Bands: ISM 2.4G, ISM 5.8G, and the version of Bluetooth and WiFi bandwidth.

6. Platform Compatibility: Some main controllers have specific WiFi chip references, ensuring compatibility is key.

7. Software Platform: Mostly Linux and Android with different kernel versions. Some may require Windows CE or Windows.

8. Module Chip Manufacturers: Mainstream manufacturers include Realtek, MTK, Atheros, Broadcom, and domestic manufacturers like RDA/BK.

Technical Specifications:

• Data Transfer Rate: Consider the handling capacity needed for your application. Overprovisioning can lead to waste.

• RF Performance: Look at the transmit power and receive sensitivity, which vary under different wireless protocols.

• Wireless Roaming: Support for 802.11 protocols to expand network coverage.

• Flexible Parameter Configuration: Options for configuration via serial port, network connection, or wireless connection.

Choosing the Right WiFi Module:

1. Application Scenario: Understand the data transmission functions and volume to determine the required data throughput.

2. Interfaces Provided: Match the module's interface type to the interfaces available on your device.

3. Key Performance Indicators: Consider the module's transmit power, which differs under various wireless protocols.

        Selecting a WiFi module for your mini PC involves balancing technical specifications with your specific needs. By considering the communication interface, power supply, antenna management, dimensions, frequency bands, platform compatibility, and software platform, you can ensure that your mini PC remains connected and performs at its best.
