How about a palm sized mini computer? I5 Mini pc MU01 evaluation experience

In the last two years, we were still competing for DIY mainframe, water cooling, light pollution, manual operation, how to exaggerate, how to make personality.

Unexpectedly, in the past two years, the mini pc has become the new favorite of users, and more and more netizens are interested in the mini pc.

In fact, it is not just netizens who are interested in it? I was also very curious about the mini pc, so I put this curiosity into action and started the most popular mini pc: i5 Mini pc MU01.

At present, I have used this mini pc for a month. Now let's talk about the real feeling this product has brought to me during the period of use!

Since this is my first time playing with the small computer, I was still somewhat shocked when I got the i5 Mini pc MU01.

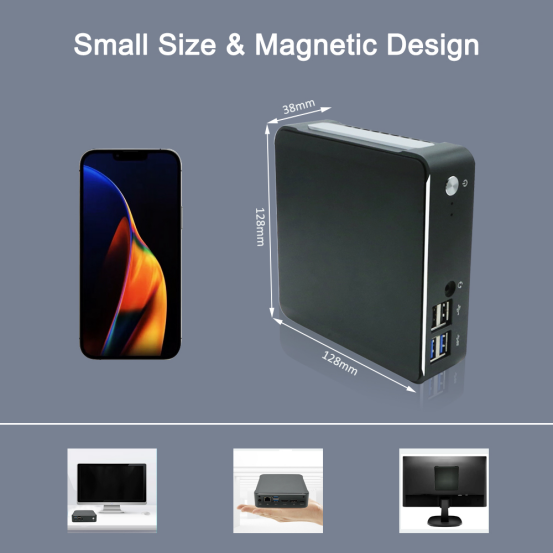

The size of this mini pc is 126 * 126 * 38mm, which is similar to the TV box at home.

The compact body not only occupies no space on the desktop, but also is convenient to carry out!

The shell of the i5 Mini pc MU01 body is mainly made of two materials: aluminum alloy and hollow metal mesh.

Although it is the first time to play with the mini pc, I understand the reasons for using two materials!

The aluminum alloy is definitely for convenience of heat dissipation and more texture, while the hollow metal mesh is for better heat dissipation of the fuselage.

The power key of the computer is designed on the front panel. The red round button is very eye-catching. When the pc is powered on, a white light will light up inside the button to remind the user that the pc is in the power on state.

In addition to the power key, the front panel also has two USB2.0 interfaces, two USB3.0 interfaces, and a 3.5mm audio interface.

The rear panel of the fuselage is composed of a DC power interface, a 4K HDMI interface, a Type-C interface, a 4K DP interface, two USB3.0 interfaces and a gigabit network cable interface. The top three long openings are the heat dissipation holes of the pc.

In general, although the i5 Mini PC MU01 has a small body, it has many interfaces, even more than those of some light and thin notebooks. I give you a good comment on this!

Many people are concerned about the disassembly of the mini pc, and want to know whether such a small pc can support capacity expansion.

In fact, the i5 Mini PC MU01 is very simple to disassemble. Just unscrew the four screws at the bottom of the machine body, and then remove the back panel. When disassembling the backplane, be careful. Don't believe that hard work can work wonders. Because there is a connecting cable between the 2.5 inch hard disk on the backplane and the motherboard. If you use too much force, it may be pulled off.

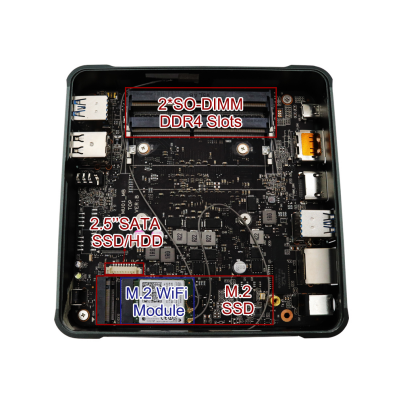

Take away the backplane and we can see the structure of the motherboard. The design of the motherboard is relatively compact, and the solder joints of various components are also very uniform. The quality control is quite good.

In addition, the left and right sides of the motherboard are memory slots and NV hard disk bits, and both hardware are from hardware manufacturers.

The memory module is 8GB * 2 DDR4 3200MHz, which is often referred to as dual channel, while the hard disk is M.22280 NVMe 512GB solid state disk.

It is worth mentioning that if 16GB memory or 512GB storage space is insufficient, i5 Mini PC MU01 also supports memory replacement and hard disk expansion.

The memory supports up to 32GB for single channel and 64GB for dual channels. The 2.5-inch hard disk on the backplane is specially prepared for expansion. Mechanical hard disk or HDD can be added according to your needs.

The memory module is 8GB * 2 DDR4 3200MHz, which is often referred to as dual channel, while the hard disk is M.22280 NVMe 512GB solid state disk.

It is worth mentioning that if 16GB memory or 512GB storage space is insufficient, i5 Mini PC MU01 also supports memory replacement and hard disk expansion.

The memory supports up to 32GB for single channel and 64GB for dual channels. The 2.5-inch hard disk on the backplane is specially prepared for expansion. Mechanical hard disk or HDD can be added according to your needs.

That is to say, the i5 Mini pc MU01 has no problem playing games simply, but this mini console is definitely not a strong point for the ultimate use experience.

In fact, I don't usually spend much time playing games. My demand for computers is mostly codewords, and occasionally there is a demand for video clips.

Therefore, I am concerned about whether i5 Mini pc MU01 can use video editing software smoothly.

The i5 Mini pc MU01 can smoothly use editing software such as PS and Pr through actual measurement, and it is easy to grasp software such as clipping, fast film and fast editing. Therefore, this mini pc has little problem as a simple productivity.

For a mini pc, temperature is also very important. With so much hardware integrated in such a small body, many people worry about heat dissipation.

According to the actual measurement, after playing LOL for 2 hours at room temperature of 24 ℃, the temperature of i5 Mini pc MU01 was tested. The temperature of this computer is 32.7 ℃, and the heat dissipation performance is excellent.

I believe that everyone has been harassed by the fans of desktop computers, so many people will also consider the problem of mute when choosing computers. The i5 Mini pc MU01 is quite good at silencing. The noise at full power operation is only 42.2 decibels, which is already very quiet.

After using the i5 Mini pc MU01 for a period of time, I think the mini host is really a new choice. The mini host is more suitable for those users who have limited desktop space and occasionally need to carry, and this mini host even

Better than some desktops!

Functionally, the i5 Mini pc MU01 can meet office needs without pressure, and mainstream games are basically competent. However, if you want to use it to play 3A masterpiece, I'm afraid it is not suitable.

So, is it worth buying? I think the i5 Mini pc MU01 will be a good choice if it is not for extreme performance, and its price is less than 400 dollars. If you want to play 3A masterpiece, it is better to have a DIY pc with a separate video card.
