Stronger than MU01, detailed performance test of EGSMTPC V330 mini pc

As a small console enthusiast, I have played with mini PC hosts such as NUC in the past two years. This year, the explosion of Intel's cool performance has kept me looking forward to the launch of NUC products. However, it is a pity that NUC12 Wall Street Canyon, as a commercial model, is somewhat disappointing in terms of cost performance. In contrast, the EGSMTPC V330 mini PC is equipped with the 10th generation Intel processor, supports DDR4 memory, supports multi screen output, and has excellent performance. Today, I would like to share the detailed performance test of this mini PC with the 10th generation Intel Core processor.

Key points of the full text:

Appearance introduction

Overall performance

Memory upgrade, overall performance

The appearance is renewed, and the size is still mini

The V330 mini pc adopts a new appearance design.

The appearance size is 11.7cm * 9cm * 3cm, and the volume is 0.5L, which is slightly smaller than V320. It is small and very suitable for desktop placement.

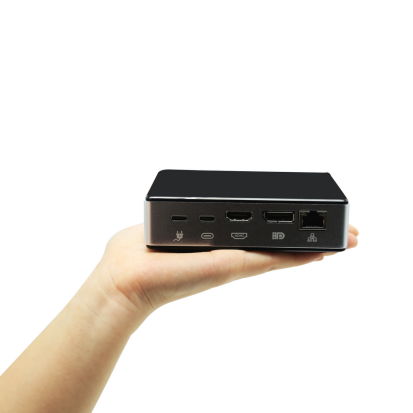

How small it is, the comparison may be more intuitive, compared with the palm.

The whole machine still adopts square design with clear edges and corners, with black frosted shell. The appearance style is still business oriented.

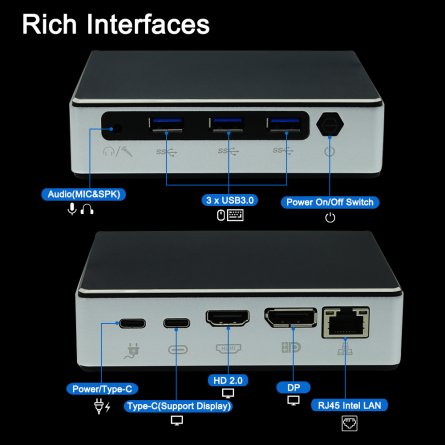

Although the size is small, the I/O configuration of V330 is still luxurious. The front provides three USB 3.0 interfaces, a power button and a 3.5mm audio interface.

The back provides an HDMI2.0 interface, a DP1.4 interface, a 2.5G RJ45 network interface, and a DC power interface. Type-C is a full function interface, supporting 100W PD power supply, DP 1.4 and 10Gbps data transmission. One HDMI 2.0+one DP 1.4, a total of three video output interfaces, allowing the V330 mini pc to support up to three screen outputs.

On both sides of the machine are large-area heat dissipation grids. The V330 mini pc uses a newly designed dual heat pipe heat dissipation module, with air inlet at both sides and air outlet at the rear. The heat dissipation enhancement is also the strength of the V330 mini PC. In actual use, the heat dissipation performance of the V330 mini PC is indeed better.

Super performance, excellent entertainment and office

The V330 mini pc series is equipped with the 10th generation Intel Core TDP 10W low-power processor. At present, only i5-1030NG7 and i7-1060NG7 are available, and a single 8G DDR4 2933MHz memory and 512G M.2 NVME hard disk are standard.

This time, I started with the i5-1030NG7 version, which has four cores and eight threads. The maximum Remax frequency is 3.3GHz. It is equipped with Intel Ruiju Xe core display. Although the CPU belongs to the mobile platform, which is used by laptops, the i5 of this mobile platform can also play well due to the burst performance of the 10th generation Core.

For the mini mainframe on the desktop, many users are concerned about heat dissipation and noise. Here, AIDA64 is used for CPU pressure test. After 10 minutes of baking, the CPU package temperature is stabilized at around 78 ℃, and the core temperature is almost 70 ℃. Compared with the Dell 1L minicomputer that we have played before, the temperature control is very good, and the temperature of the body heat sink is not high.

It can also be seen from AIDA that under the pressure test, the i5-1030NG7 of TDP 10W is actually limited by the power consumption wall, and the actual TDP is 10W

When the ambient noise is 32dB, the noise of V330 mini pc in daily use is about 34.8dB, and the noise of baking machine in full load is 52dB. The heat dissipation noise is very quiet under normal use.

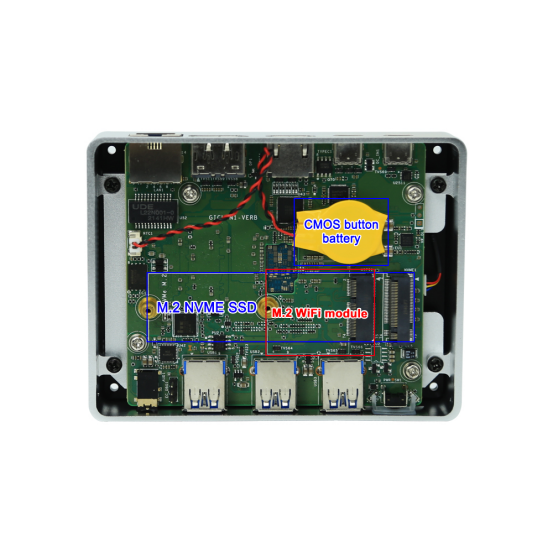

Open the bottom shell, you can see that the V330 mini pc motherboard is equipped with a M 2 2280 hard disk bits. A 2.5 inch hard disk bit is reserved through flexible cable expansion. For users with large capacity storage requirements, the storage capacity can be expanded by adding a 2.5 inch hard disk.

M. 2. The memory installation location of the V330 mini pc with the anti-static metal film beside it is. The V330 mini pc has one DDR4 notebook memory slot, which supports up to one 8GB DDR4 memory. The standard configuration is a single 8G DDR4 2933MHz memory.

summary

Thanks to the powerful performance of the Intel 10 generation CPU, this V330 mini PC can be used as the main force in office. It can easily handle data reports, software programming, or short video clips. It also supports the output of three display devices, which is also suitable for financial workers.

Strong hardware decoding support is more than enough to be used as a high-definition player.

Small size, placed under the monitor, does not occupy any desktop space.

The enhanced heat dissipation module can be used on the desktop without noise.

Compared with the NUC12 of the same type, it is better in performance. The standard version is pre installed with Windows 11, which can be used after boot. If you are also a small console enthusiast, or need an office computer with both performance and volume, the V330 mini PC may be the best choice.
