The mini PC I have been using recently: EGSMTPC S600-5900HX mini computer

I will give you the mini PC I have been using recently: EGSMTPC S600-5900HX mini host, AMD Ryzen9 5900HX processor, AMD Radeon Graphics 8-core 2100MHz graphics card, supporting HDMI+DP+Type-C three screen display, supporting 4K 60Hz, WiFi6+Bluetooth 5.2 wireless technology, hard disk reading and writing about 2000MB/s, and almost no noise.

Due to the thickness of notebook computers, only 35W and 45W power consumption processors will be installed in the game. But for the mini host, the positioning is small desktop, so there is more room for cooling.

It happens that EGSMTPC is the solution partner of small and medium-sized enterprises. AMD Ryzen 9 5900HX processor was selected. As the flagship processor of the current AMD mobile terminal, it has eight cores and sixteen threads (8C16T), TDP: 45W, reference frequency: 3.3GHz, and the highest frequency: 4.6GHz. Supports PCIe 3.0, DDR4-3200, and LPDDR4 memory. Built in AMD Radeon 8 integrated graphics card, with 12CU graphics processor unit, the graphics performance is close to NVIDIA GeForce MX550.

Rich interfaces

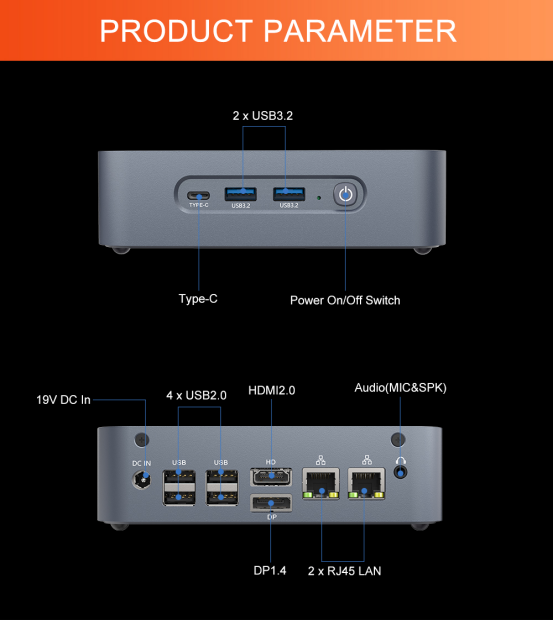

The front of the S600-5900HX mini pc continues the design ID style of the S600-5900HX mini computer. The distribution of I/O interfaces on the front panel: On/Off key × 1，USB 3.2 × 2，USB Type-C × 1。

The appearance of the mini pc continues the high appearance of EGSMTPC as always.

I/O interface distribution on the back of S600-5900HX mini pc: DC power supply port × 1. 2.5G LAN interface × 2，HDMI2.0 × 1，DP 1.4 × 1，USB 2.0 × 4。

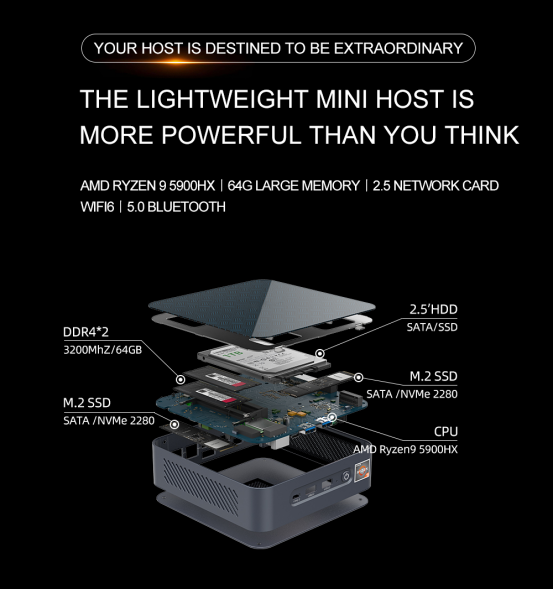

The internal structure of the S600-5900HX mini host is also fully upgraded. In addition to the main board CPU partially covered with cooling copper tubes and fans, there is also a fan in the NVMe SSD area on the chassis to provide active cooling. Dual SO-DIMM memory sockets, one PCIe 3.0 NVMe SSD socket and one M 2 NGFF (SATA) SSD slots.

Hardware configuration of S600-5900HX mini pc: AMD Ryzen 9 5900HX (8C/16T), 16GB DDR4 memory (16GB × 2 SO-DIMM), 512GB PCIe 3.0 M.2 NVMe SSD, 2.5G LAN interface, 1.2Gbps Wi Fi 6 wireless network card.

The performance of the S600-5900HX mini host has been further improved, and has passed the strict MIL-STD-810H durability test, including extreme temperature and humidity, high altitude, fall and vibration tests, to ensure stable operation in harsh environments; This machine is very suitable for users who have low requirements on the performance of graphics cards and high requirements on CPU performance, small size and stability.

Configurable interfaces are provided, which can be specified as HDMI, VGA, DisplayPort or COM interfaces, as well as 2.5G LAN, so that users can choose according to their needs. Through HDMI interface, one DisplayPort and one USB-C interface, it can support up to three 4K display devices.
